DHCT-M Hall-Effekt-Stromsensor
Linearity of Rated Output Voltage:± 1%
Response Time:10 μ sec
- Offset (Residual) Voltage:±0.05V
- Linearity of Rated Output Voltage:± 1%
- Power Supply:±15V
- Consumption Current:20mA
- Response Time:10 μ sec
- Thermal Drift of Output:TYP. ±0.08% / ℃, Max. ±0.1% / ℃
- Hysteresis Error:±0.035V
- Insulation Resistance:Over 500MΩ/500V between aperture and terminals
- Applied Voltage Test:2000V, 50 / 60Hz between aperture and terminals
Part# / specs:
Part# |
Rated Input Current (Ampere Turn) |
Liner Range |
Rated Output Voltage |
DHCT-M0100 |
100A |
0~ ± 200 |
4V |
DHCT-M0200 |
200A |
0~ ± 400 |
4V |
DHCT-M0400 |
400A |
0~ ± 600 |
4V |
DHCT-M0600 |
600A |
0~ ± 900 |
4V |
DHCT-M0800 |
800A |
0~ ± 1200 |
4V |
DHCT-M1000 |
1000A |
0~ ± 1500 |
4V |
DHCT-M1200 |
1200A |
0~ ± 1800 |
4V |
DHCT-M1400 |
1400A |
0~ ± 2100 |
4V |
DHCT-M1600 |
1600A |
0~ ± 2400 |
4V |
DHCT-M1800 |
1800A |
0~ ± 2700 |
4V |
DHCT-M2000 |
2000A |
0~ ± 3000 |
4V |

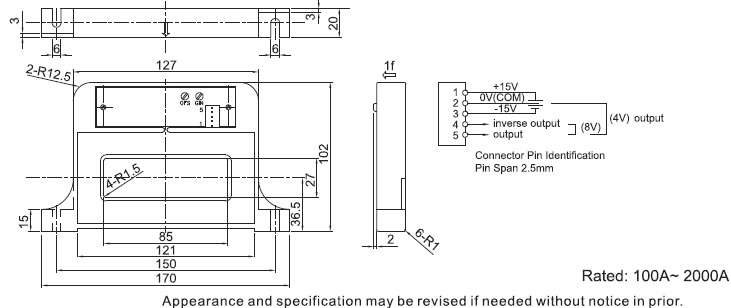

Dimension / Weight:
- 170(L) x 102(W) x 20 (H)mm
- Approx. 500g
- Aperture size: 85 x 27mm
TEMP./Humidity:
- Operation:-10°C~ 80°C/ <80% R.H.(no condensation)
- Storage:-15°C~ 85°C/ <70%R.H.(no condensation)
- Superior linearity
- Application to both AC and DC measurement
- Compact size and light weight
- Quick response
- Providing absolute electrical isolation
Applications:
- UPS systems
- AC and DC servo systems
- Speed controller of motors
- NC tooling machines
- Inverter-controlled welding machines
- Controller of lifts
- Controller of electrical vehicles
- Process control devices
- General and special purpose inverters
- Other automatic control systems
