• DE-2442 vu-Meter

DE-2442 vu-Meter

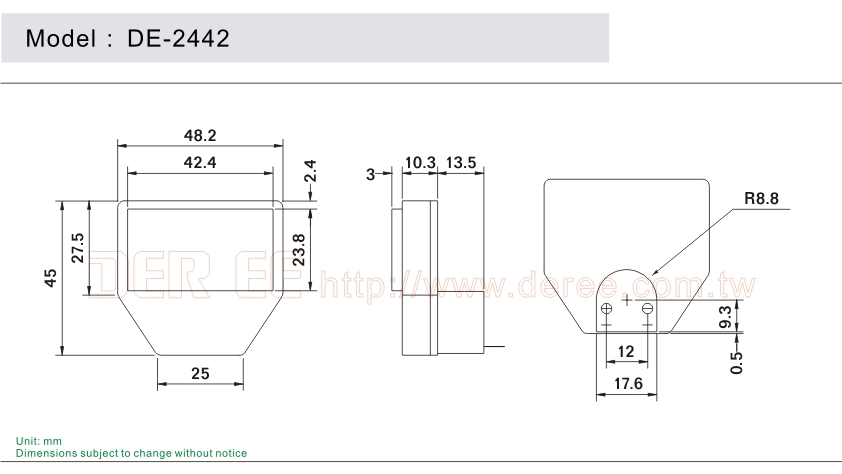

● SIZE : 48.2 x 45 x 27 mm
Model : DE-2442

When you order DER EE VU meter, please indicate about the following information:

 Meter Dimension

Please indicate meter size

 Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω


200µA , 250µA , 500µA, 1mA

 Pointer Color

As your color request

 Scale Plate

Custom design according to your drawing


Standard type is 12V/55mA transparent.


If you request special specs., please indicate the voltage and current

 Install position of the level meter

Vertical or horizontal

 Popular spec




● SIZE : 48.2 x 45 x 27 mm
